Tensile structures are the perfect combination of architecture and structural architecture. It is a combination of high-strength flexible film material and support system to form a stable surface with a certain stiffness and can withstand a certain amount of space load outside the structure. It has the characteristics of free shape, light weight, flame retardant, easy installation, energy saving, safety, etc. Tensile fabric structures have been widely used around the world.

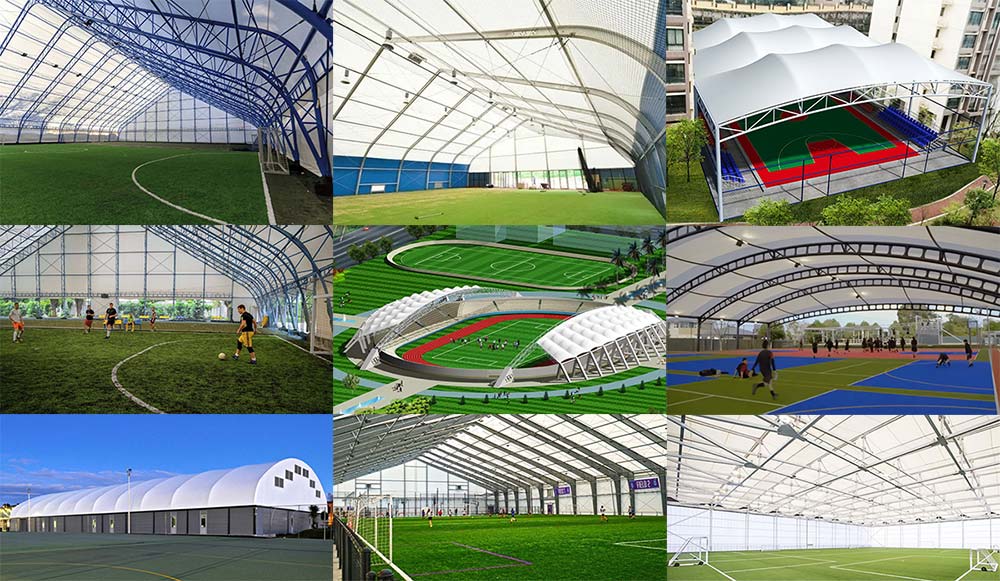

This fabric covered tensile structure is particularly suitable for multi-purpose sports fields such as football, rugby, cricket etc.

The fabric covering of the tensile structure is a membrane material with good strength and flexibility. It is made of fibers woven into a fabric base material. The material is placed in the center using a resin-coated fixation process on both sides of the base material. Fabric substrates are divided into polyester and fiberglass, but as resin coating materials are used in:

• PVC: PVC coated polyester
• PVDF: polyvinylidene fluoride
• PTFE: polytetrafluoroethylene resin
• ETFE: ethylene-tetrafluoroethylene copolymer

The following functional properties have a mechanical impact on fabric substrates and coating materials.

1. Fabric substrate – tensile strength, tear strength, heat resistance, durability, fire resistance.

2. Coating materials – weather resistance, antifouling, constructionability, water resistance, and light transmittance.

Tensile structure basic performance parameters

• Material Thickness: usually 0.05mm-0.82mm
• Weight (Gsm): 700 - 1100g per square meter
• Gutter: Inbuilt Gutter System
• Temperature: -40 to +70 (degree celsius)
• Tensile Strength: 2500-4000N
• Tear Strength: 520-580N
• Fire rating: DIN4102 B1/SGS M2
• Wind Load: 120 km/h

Characteristics of tensile structure

• Personalized Customization - We provide tensile structures in different sizes, shapes, and colors based on customer requirements and regions.
• Multi functional - stretch structures are an ideal solution for various applications. It can be used in various occasions around the world, including sports, transportation, commerce, landscape, industry, agriculture, hotels, etc.
• Beautiful and unique design - can be used in any shape and almost any size.
• Coverage - Lightweight, covering a large area with minimal interference, expanding outdoor living areas.
• Excellent semi transparency - providing natural lighting and reducing heat transfer.
• High strength and strength - Durable and long-lasting properties that can withstand the harshest winds, most dazzling sunlight, and the wettest weather, with a long service life.
• Easy to clean - you can use regular detergents, soap, and water to clean aggressive dirt.
• Cost effectiveness - perfect weldability. Easy to manufacture. Easy to install. Easy to maintain.
• Environmentally friendly - recyclable and easy to move, relocate, or refurbish.
• A variety of colors to choose from - the bright colors of the film can create milestone structures.

Tensioning structure function

• All weather protection, perfect UV resistance, waterproof, windproof, snowproof, and shockproof.
• Completely heat-resistant and waterproof.
• High wear resistance, anti-aging, anti-static, high light transmittance.
• Fireproof, flame-retardant, moisture-proof, smoke proof, soundproof, and self-cleaning.

Why choose CANGLONG tensile structure?

• We are a leading manufacturer, exporter, supplier, and installer of various types of tensioning structures.
• Our products are made of high-quality PVC/PVDF/PTFE/ETFE film materials and steel, strictly in accordance with industry standards.
• We provide a complete turnkey solution to meet all your stretching fabric structure needs.
• We provide budget friendly market prices for all customers.
• We ensure that your project will be delivered and installed with excellent efficiency, on time, and on budget.
